Service details / labeled visual references
Auto glass service image gallery. See the tools, process stages, and documented examples.
Filter this visual-reference gallery to understand common process details and documented examples. Image sources are documented on the credits page. These images explain the services; they are not presented as an Auto Glass General job portfolio.
Image standards
Useful context without misleading claims.
- Service and appointment-context filters
- Honest process and result captions
- Documented comparisons only
- Optimized, responsive image formats
Showing 15 images

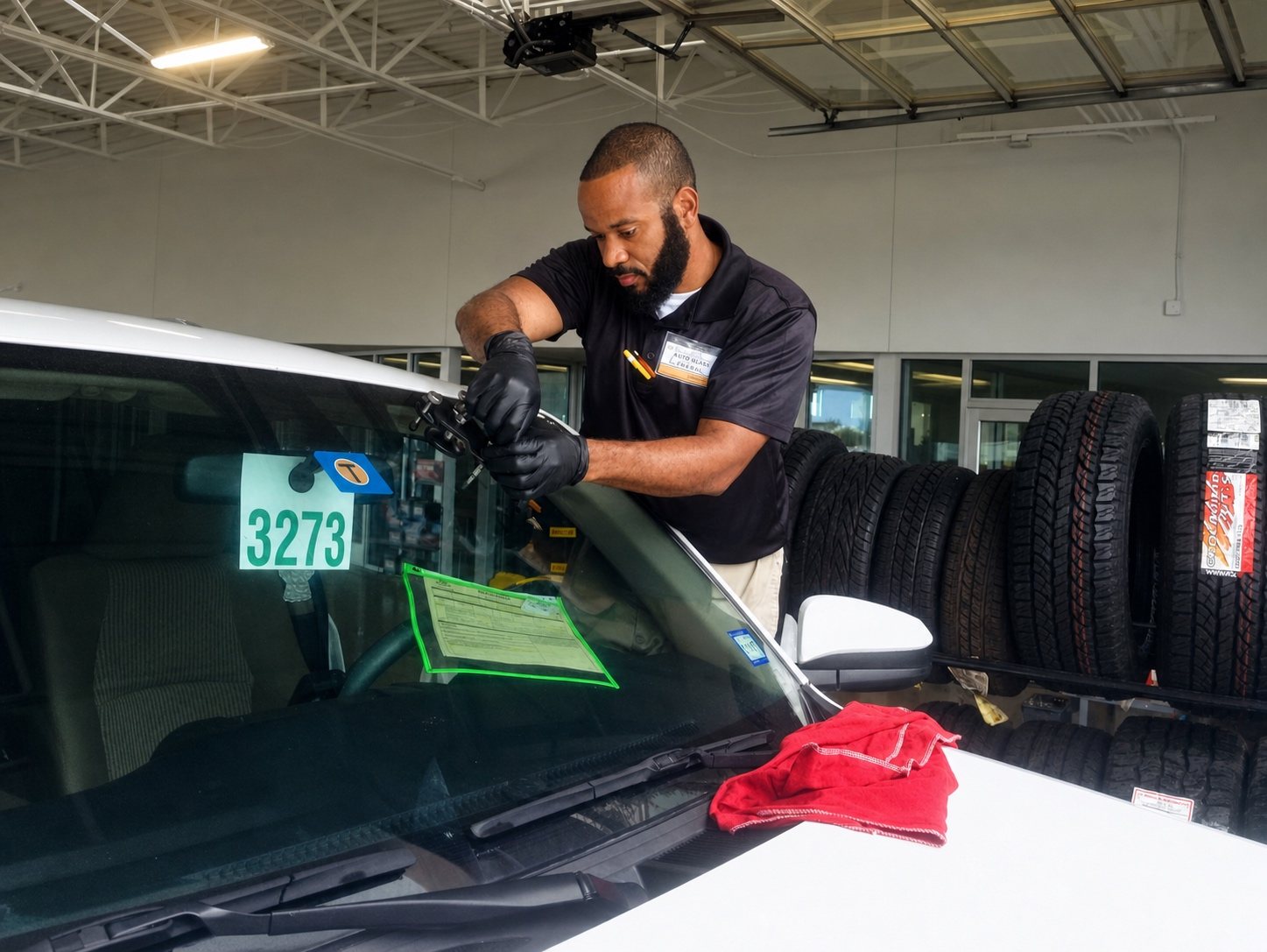

A repair bridge and curing light are used when the chip type, size, and location qualify for repair.

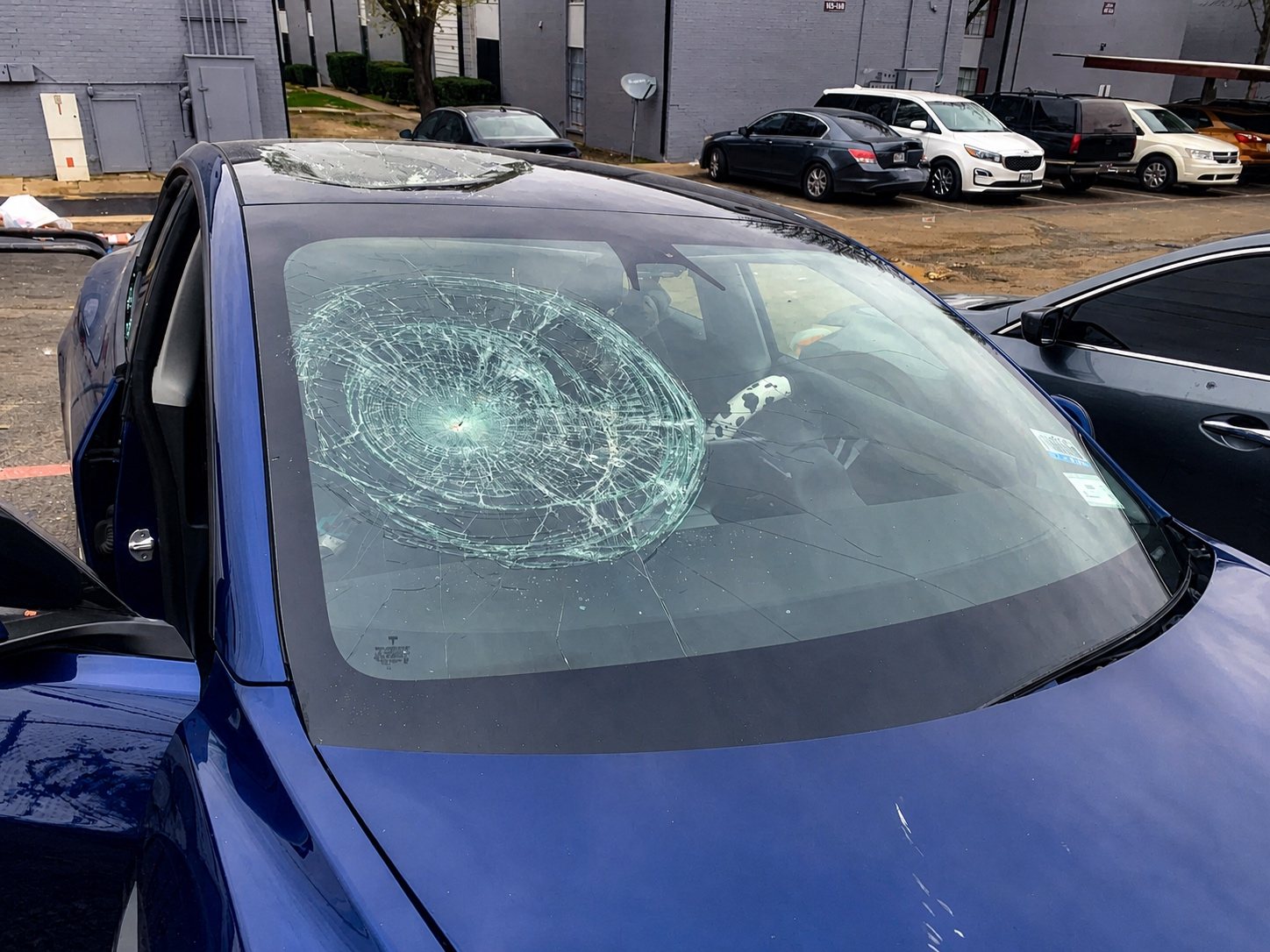

Large, spreading, or structurally severe damage generally points to replacement rather than chip repair.

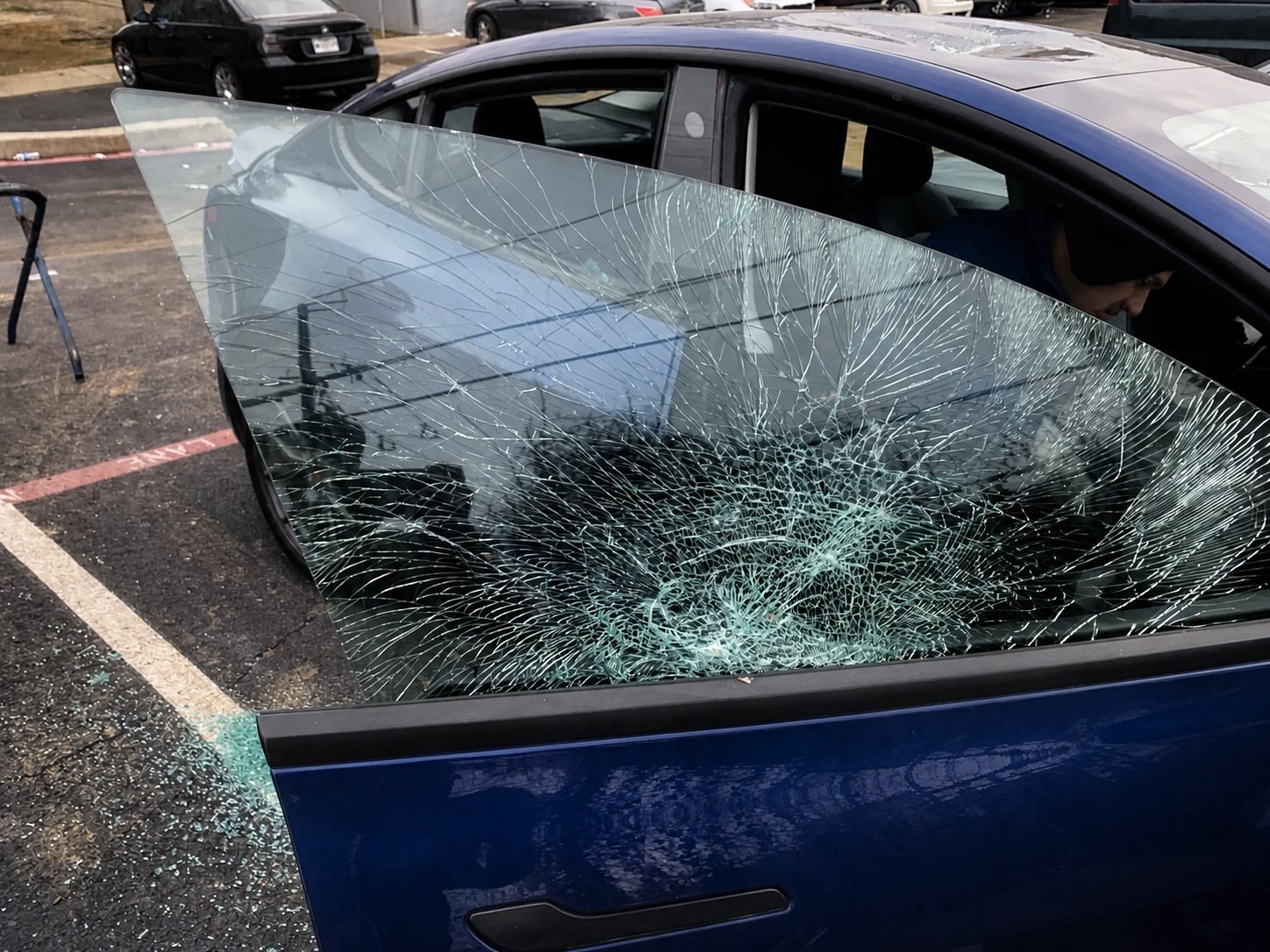

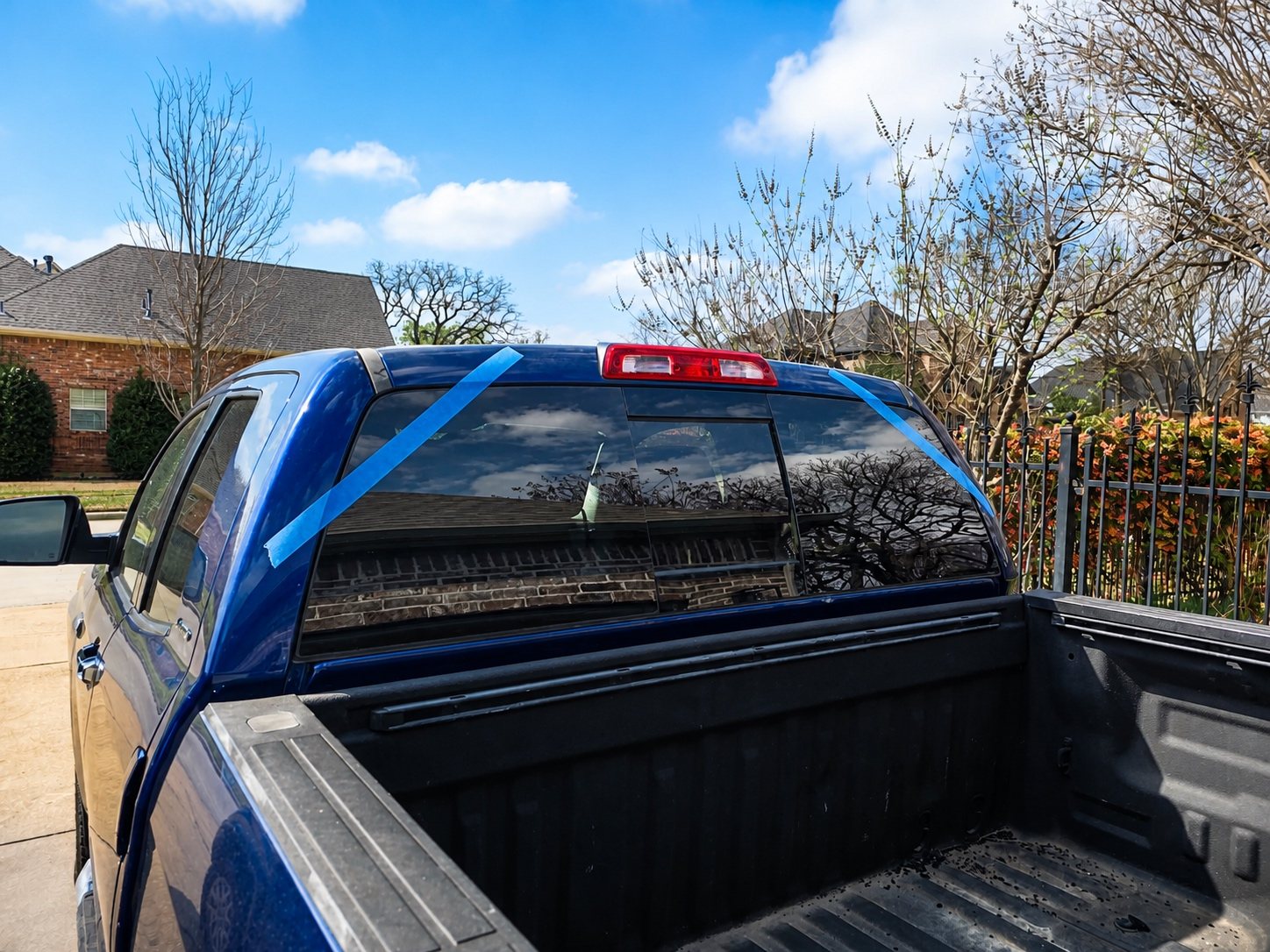

Auto glass service also includes qualifying rear and side glass—not only windshields.
A reflection light makes subtle line distortion easier to inspect before a PDR recommendation is made.
Before: documented hail dents visible across the roof panel.
After: the same roof following documented PDR work.

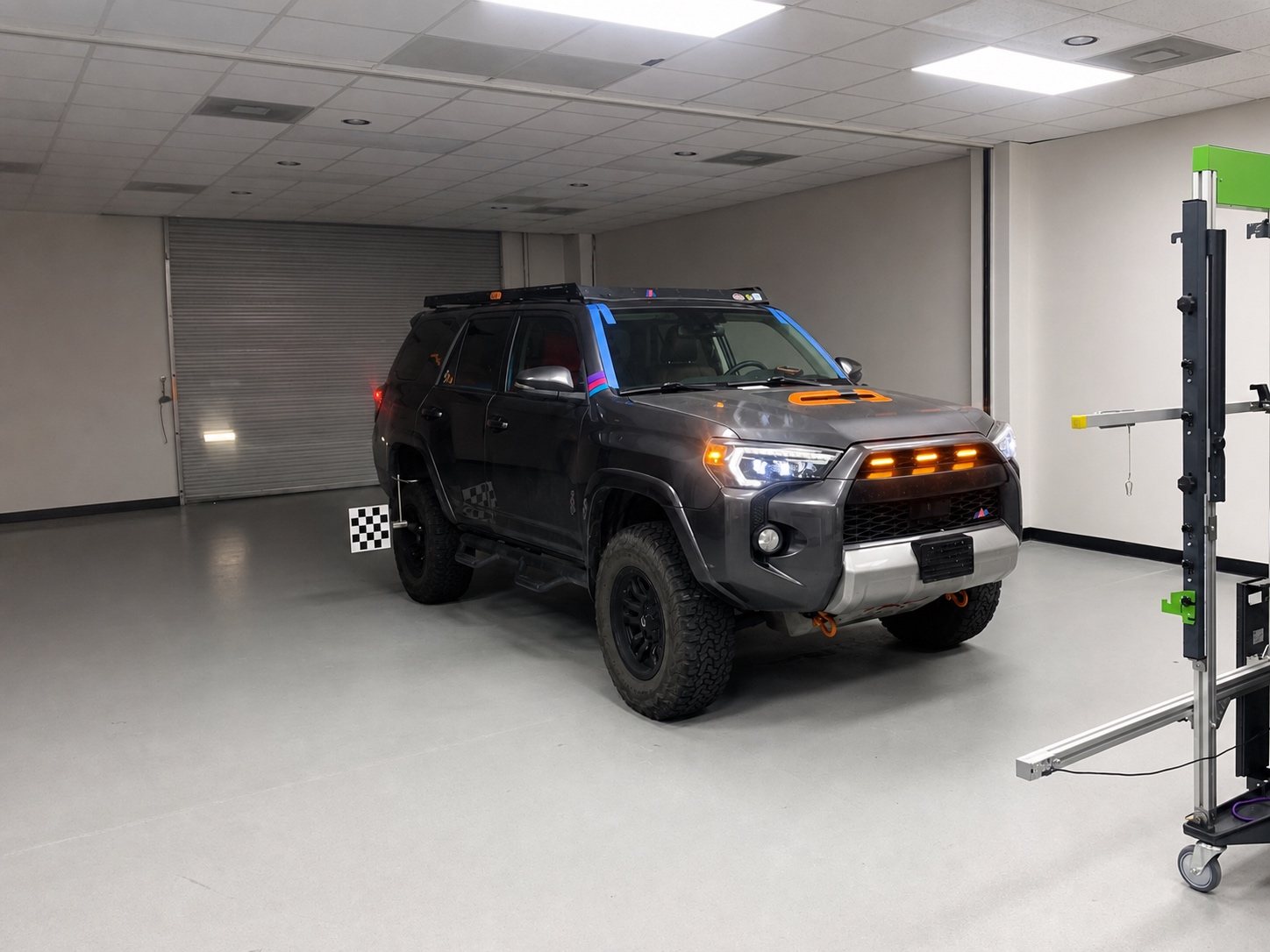

Static calibration begins with vehicle-specific target height, distance, centerline, and bay-condition measurements.
Forward-facing camera systems can be mounted behind the upper windshield and may require recalibration after glass replacement.

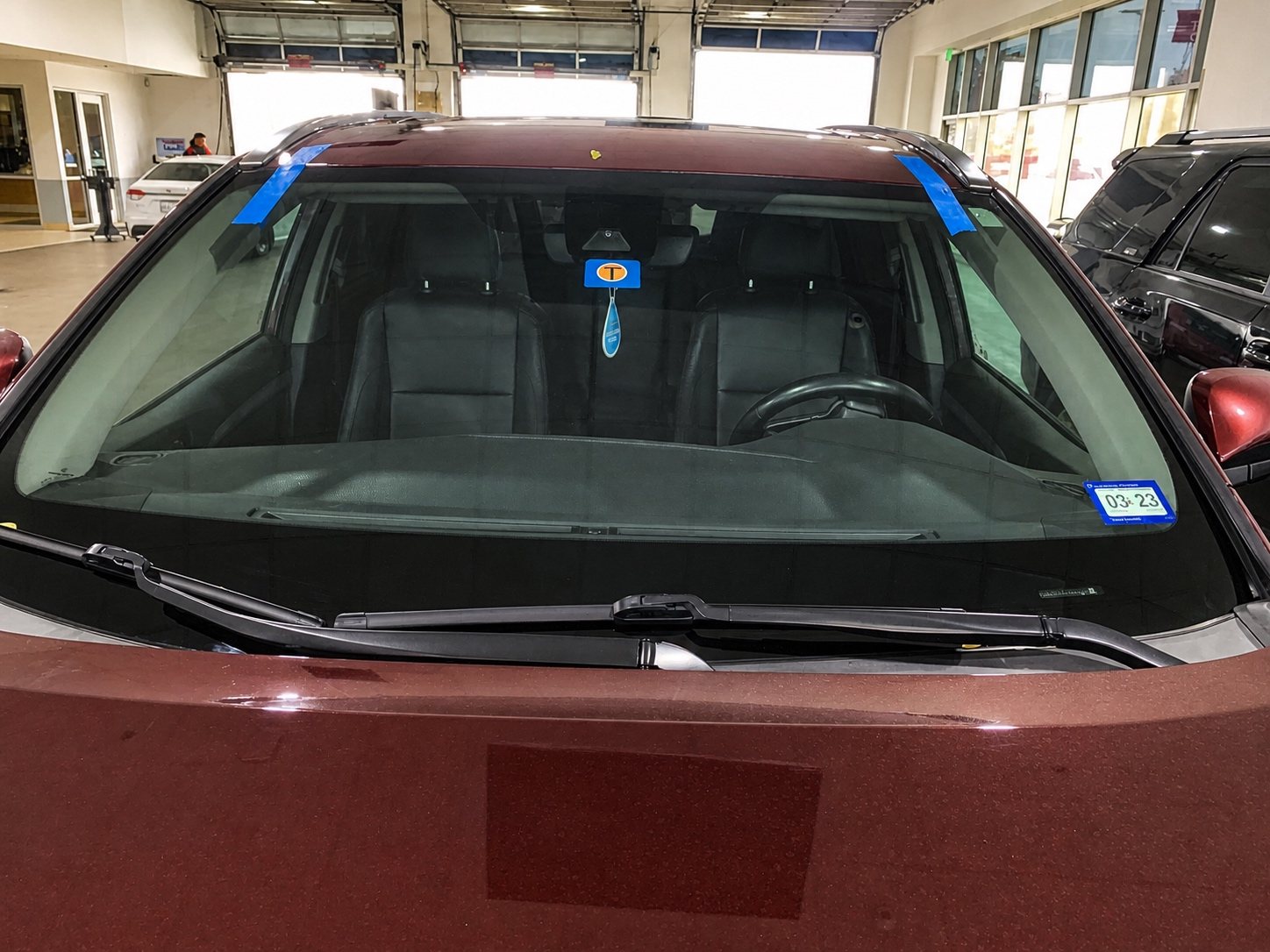

A completed routine is checked against the applicable procedure before the vehicle is handed back.
Staged sanding can level the oxidized surface before progressively finer finishing steps.
A compatible protective finish is applied after surface correction to help slow renewed UV oxidation.
A completed licensed example shows the clearer exterior lens surface after sanding and polishing.
Fleet-location service uses protected work surfaces, glass lifters, cleanup equipment, and a vehicle-specific replacement part.

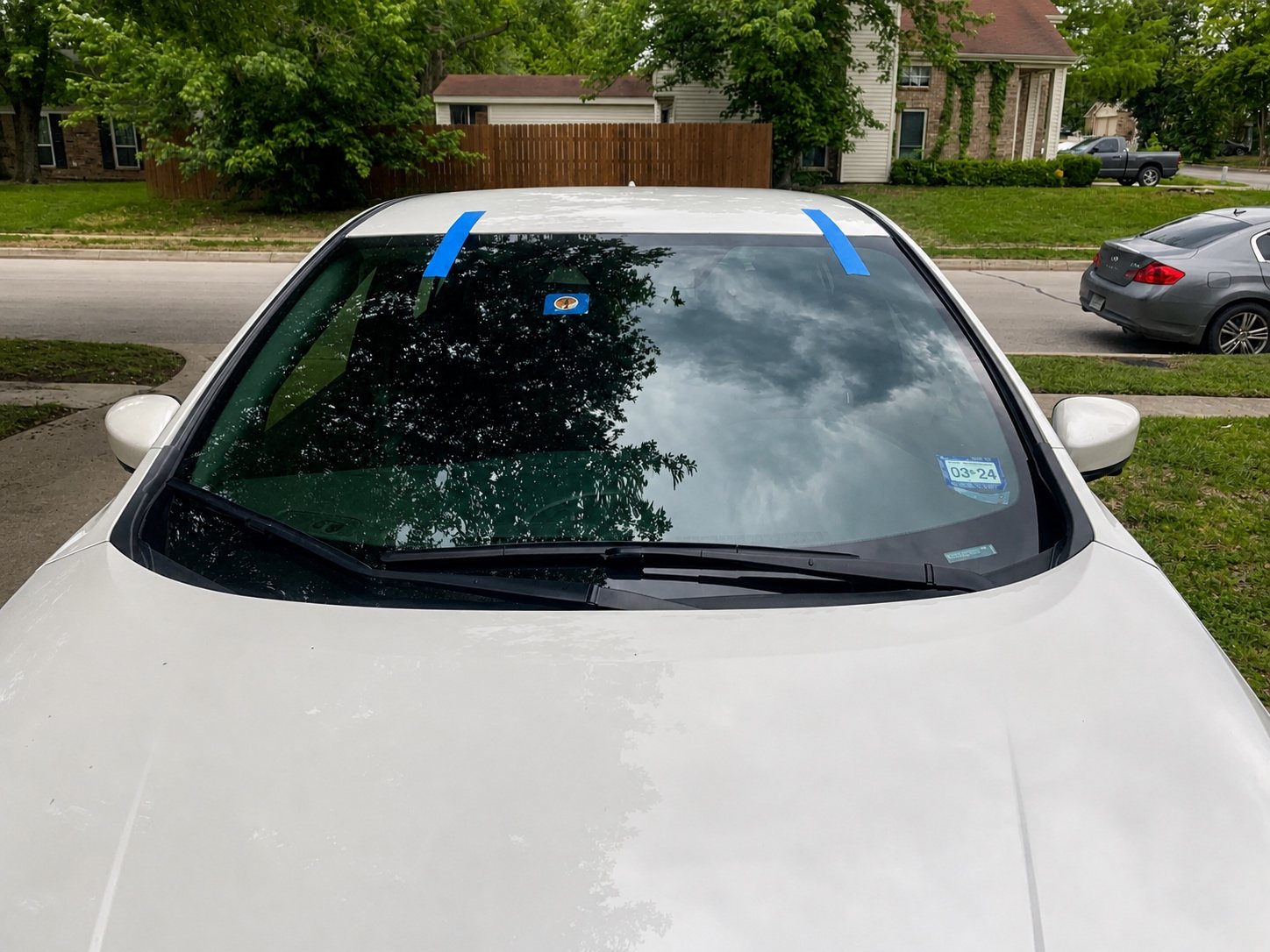

Confirm the vehicle, glass, access, and parking conditions before mobile work begins.

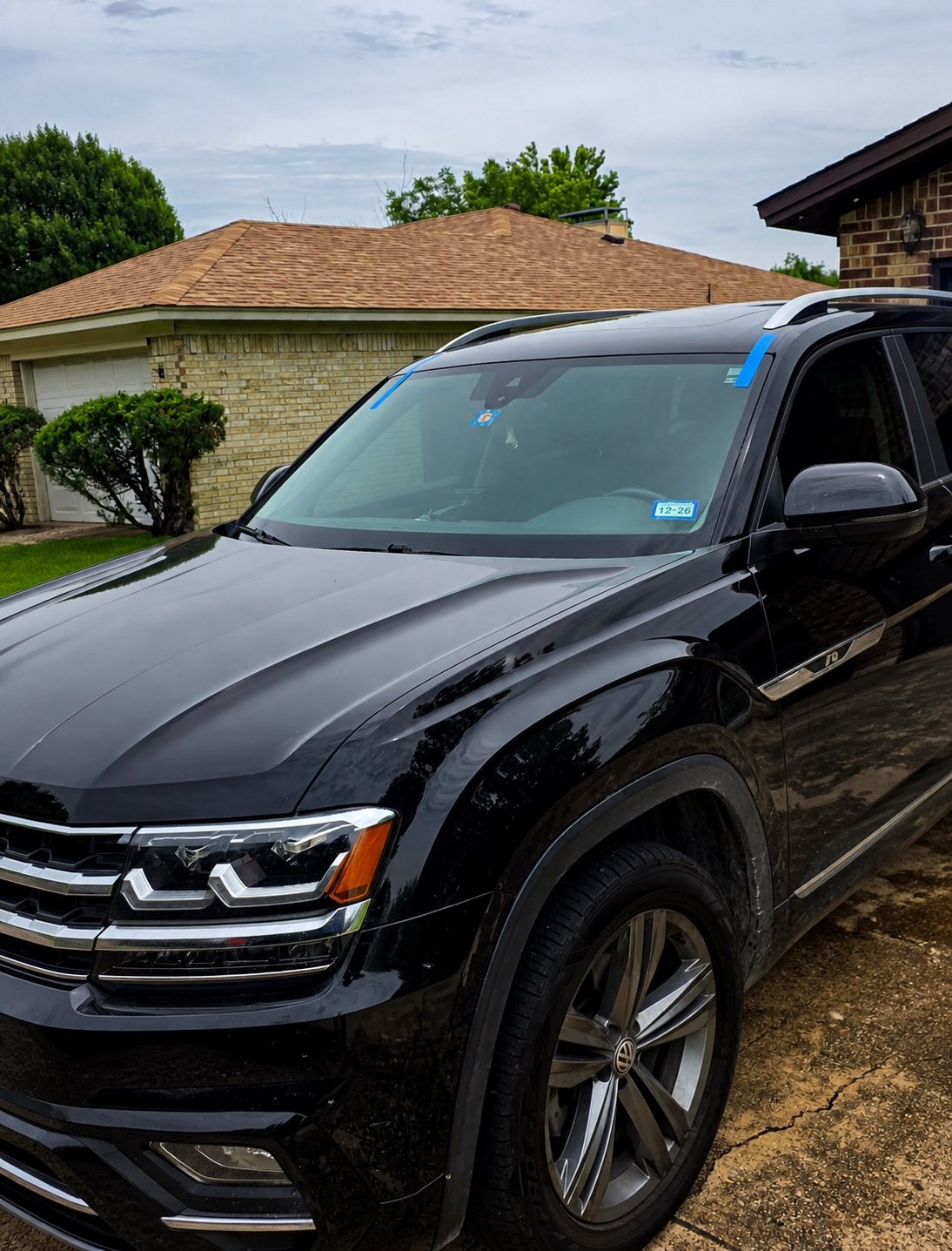

After installation, the technician explains safe-drive-away timing and any temporary retention measures.
Your vehicle will be different
Show us the damage you are seeing.
Gallery references explain the process; they do not determine your repair or promise an identical result. Request a quote for a vehicle-specific recommendation.
